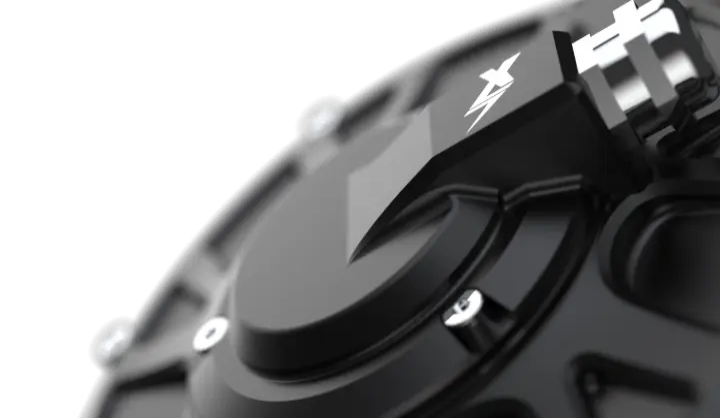

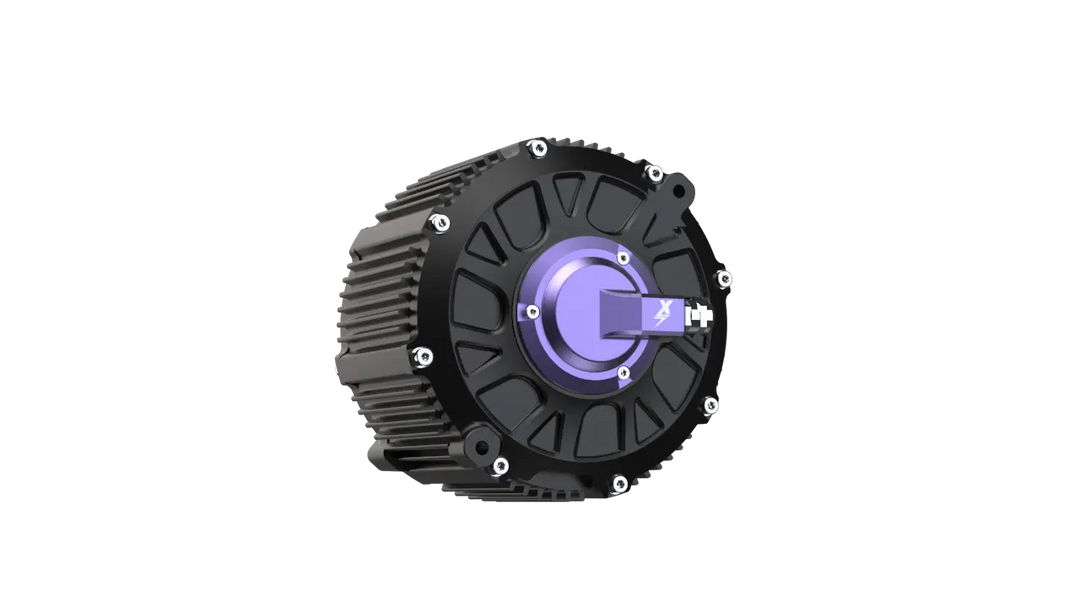

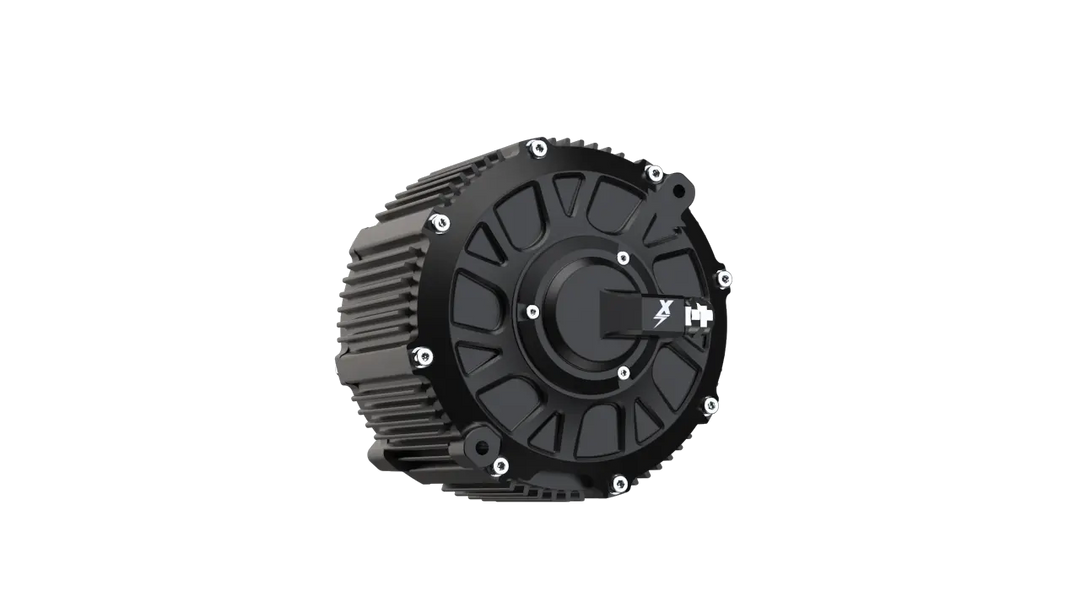

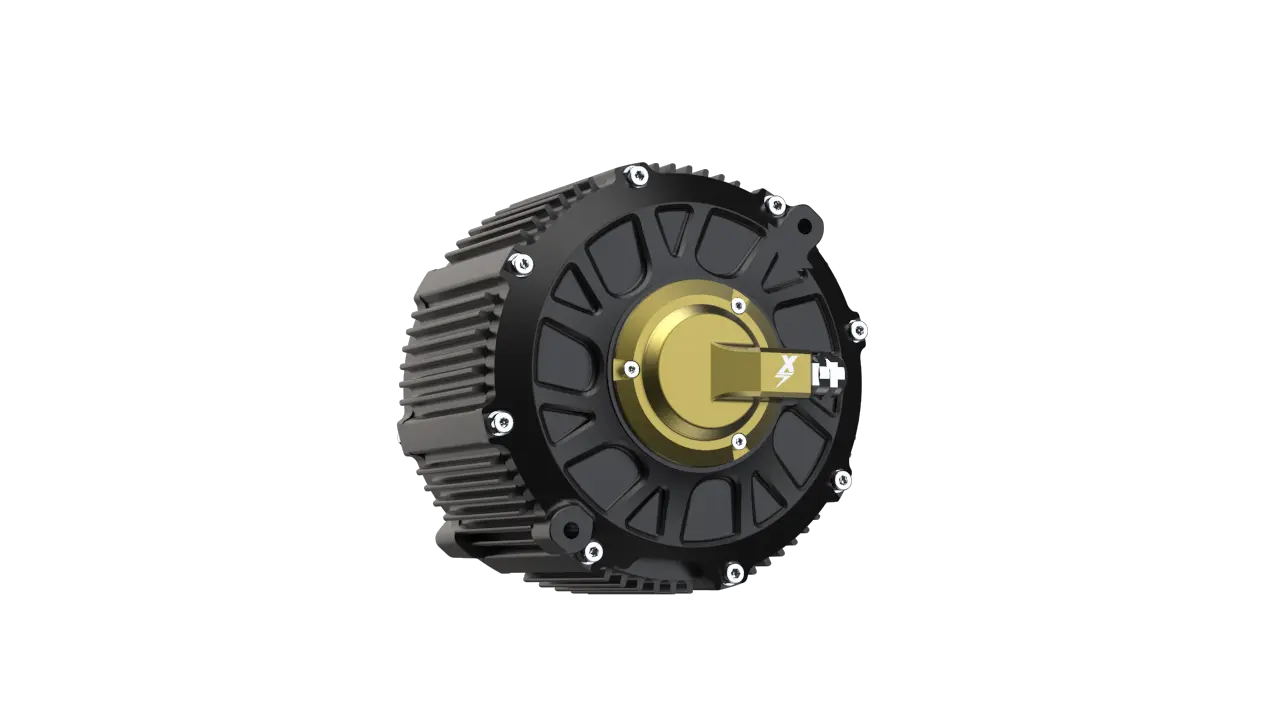

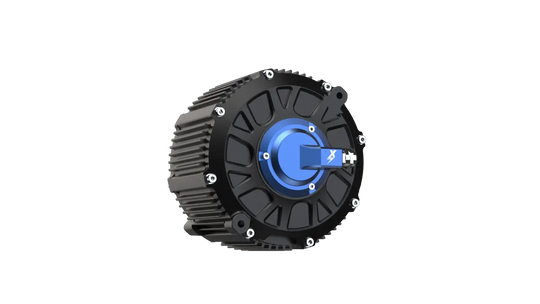

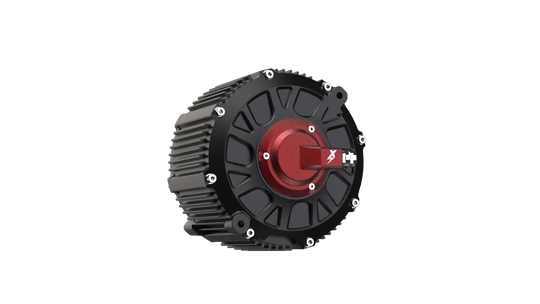

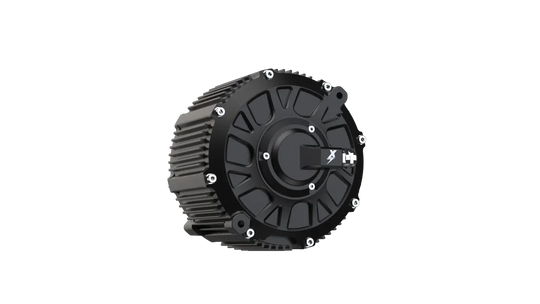

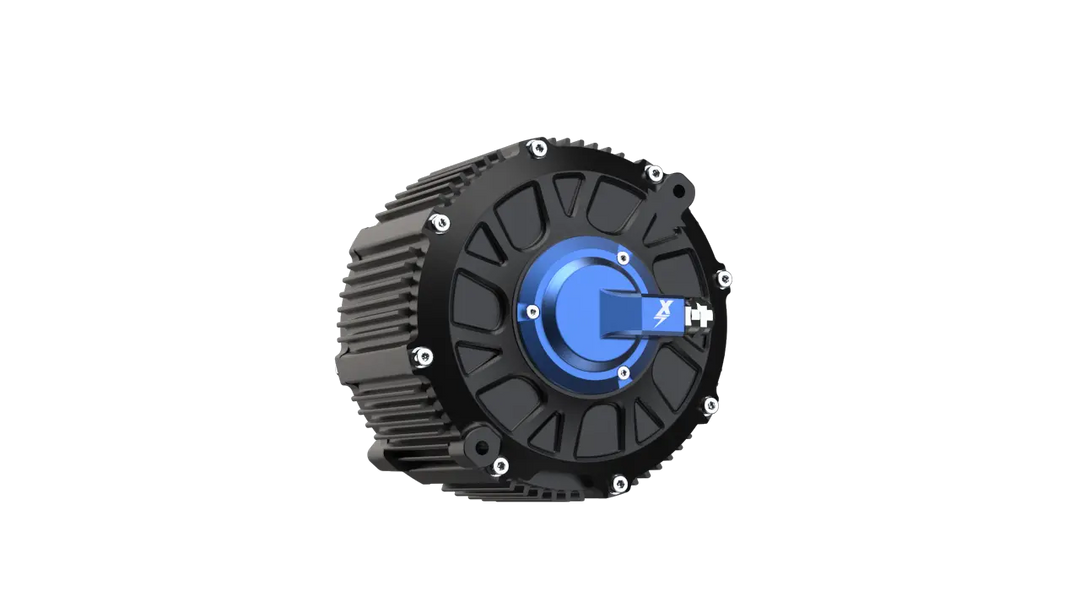

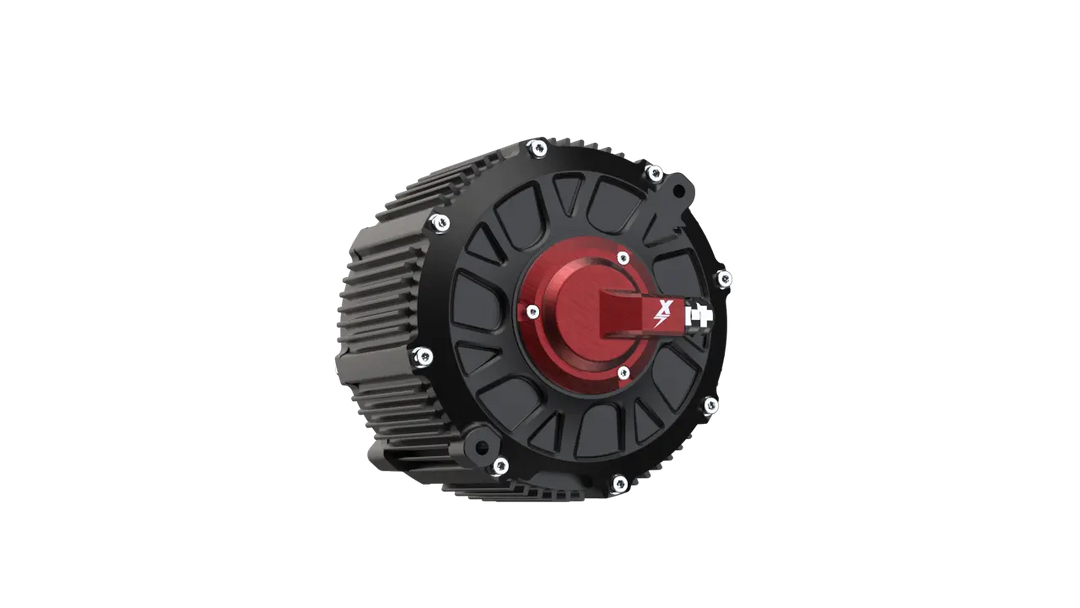

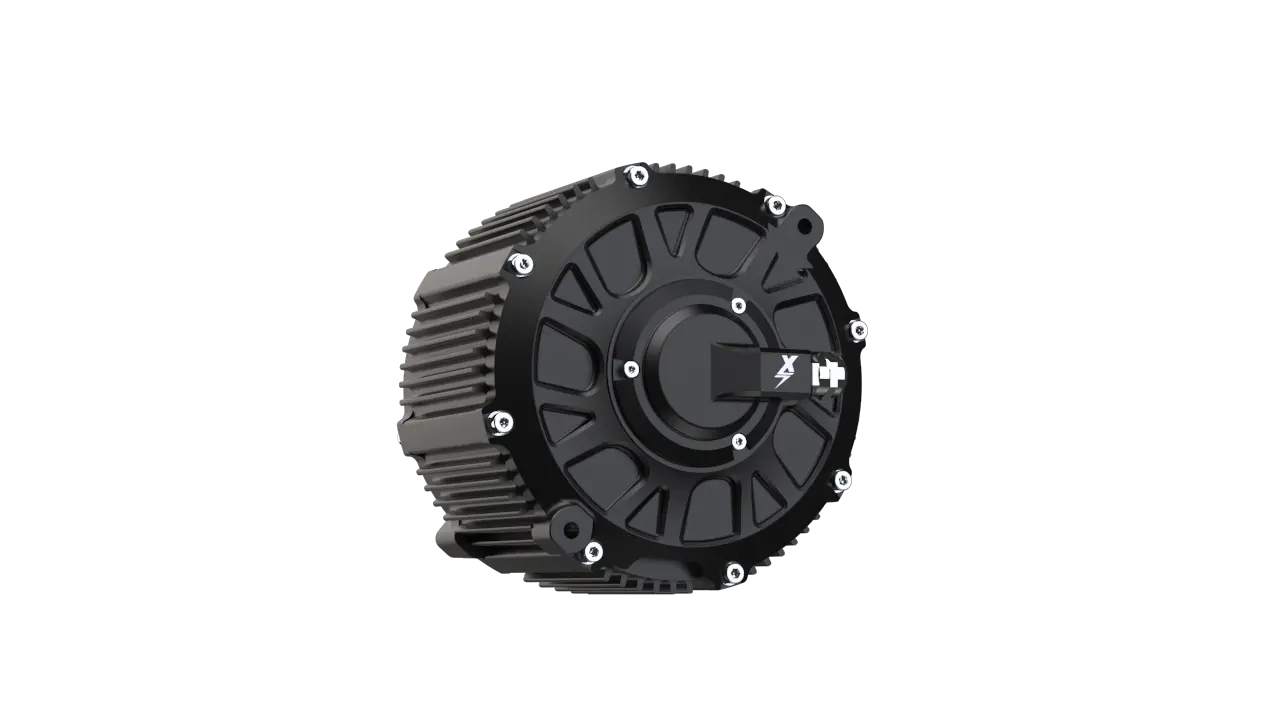

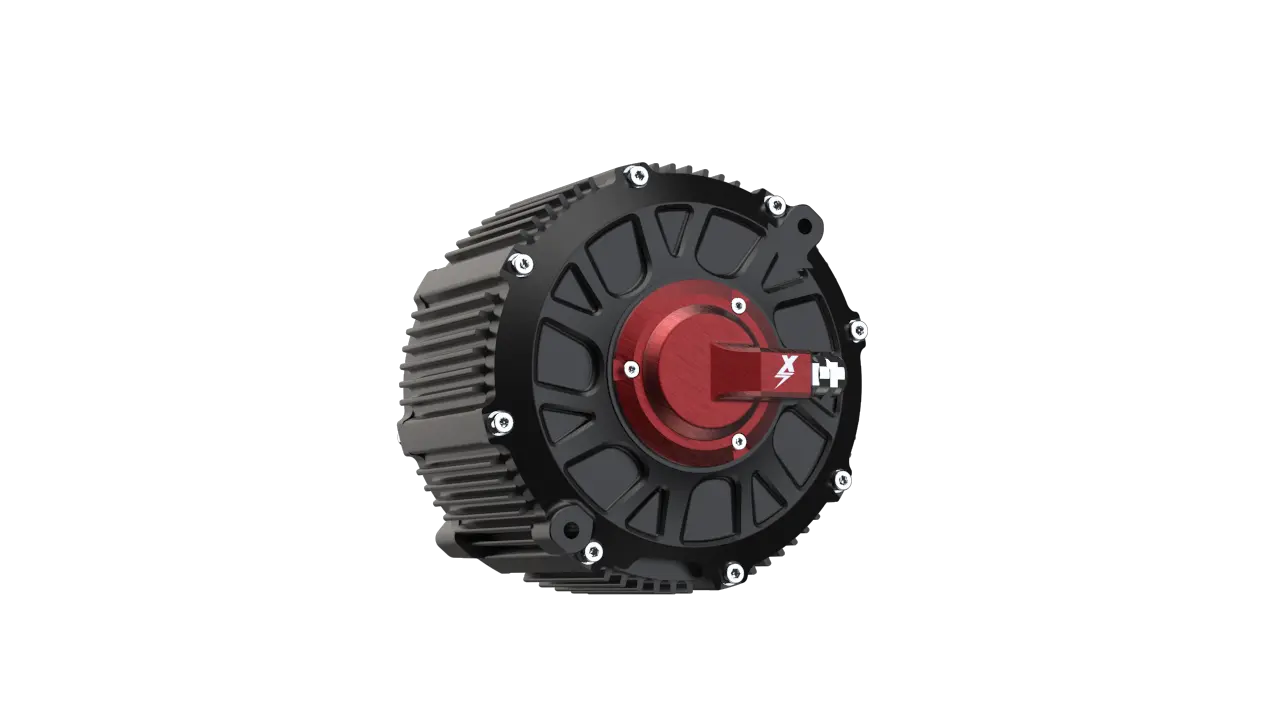

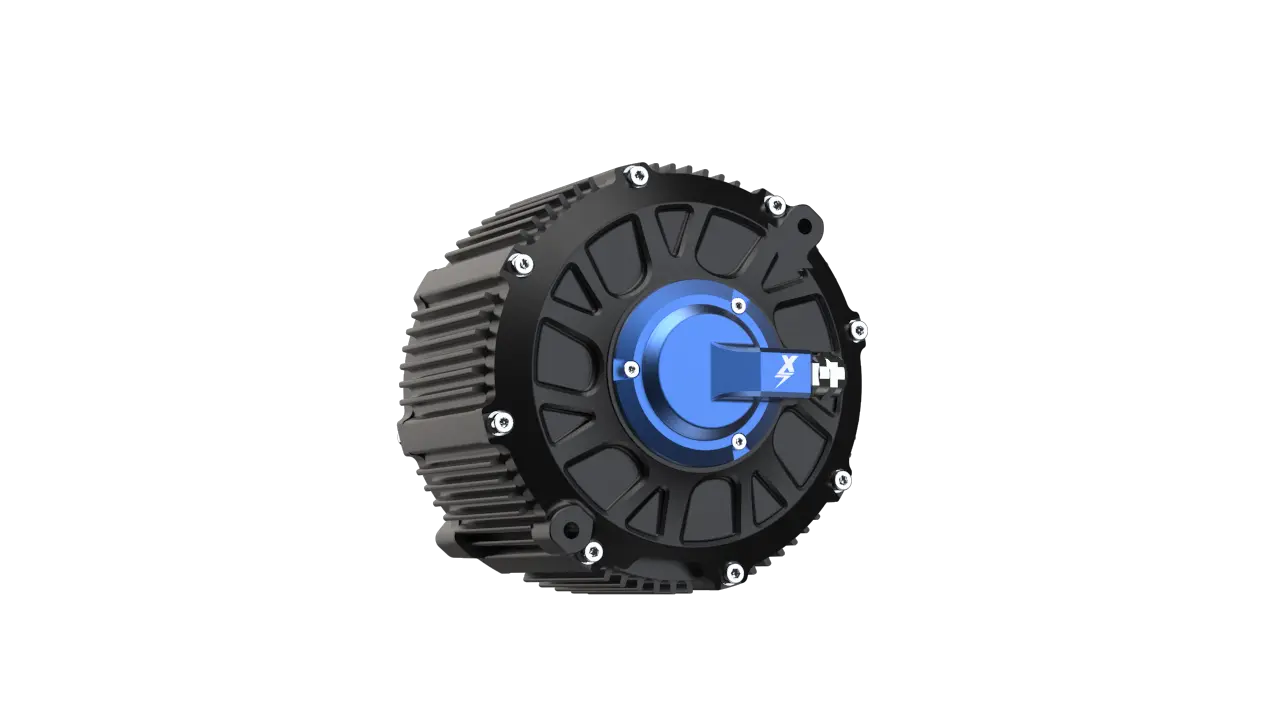

Get ready to redefine riding with theall-newEBMX XLB-60 CORE Motor—a fusion of raw power, cutting-edge electric performance, and the fearless spirit of adventure. The EBMX XLB-60 CORE isn’t just a MOTOR—it’s a revolution. Strategically priced to give riders maximum performance atunmatched value.
MAP $999.89
Available for E-Ride Pro SS, SurRon Light Bee, 79BIKE Falcon and more to come.
Designed for riders who demandmore speed, more torque, and more freedom, this motor is built to dominate any terrain.
High-Performance Electric Power – Smoother torque delivery.
Rugged Design, Unmatched Agility – Engineered for extreme off-road conditions, agile street riding, and next-level stunt performance.
Precision & Control – Featuring asmoother throttle responsefor maximum control and confidence. Encoder sensors provide superior control over hall sensors by offering precise rotor position tracking at all speeds. This translates to a smoother, more responsive power band and reduced controller issues.
Suitable for use, with an upgraded battery, in SurRon Light Bee and ERide Pro and more to come!
Tech Specs
Stator
64mm
Power
87KV
41kW Peak under load testing (90v 1100 phase amps)
Voltage Range
48v - 104v
Max Phase Current
1200A
Max Rated RPM
12,000 Rated RPM
Sensor
Encoder NJDC 605
Motor Configuration
10 poles 12 slots
Real World Results
32-35kW
On 72v with 18" rear with 52T sprocket
Recommended Off Road Gearing
18" - 52t sprocket
16" - 48t sprocket
Warranty
2 Years
Freight shipping is available nationwide from $200 to $450 based on your zip code. You can see the full price when added to your cart.
Local Pickup available for FREE in Salt Lake City, Utah.
