High Voltage Fuse Kit & Replacement Fuses

Option

Kit 250A

250A Spare Fuse

300A Spare Fuse

In stock, ready to ship
Backordered, shipping soon

High Voltage Fuse Kit & Replacement Fuses

Protect your battery and electrical system with our high-voltage fuse solutions. Choose between a complete fuse kit or replacement fuse options for service and maintenance.

The complete kit includes everything required to install a new fuse assembly, while replacement fuse options are available for riders who already have a fuse holder installed.

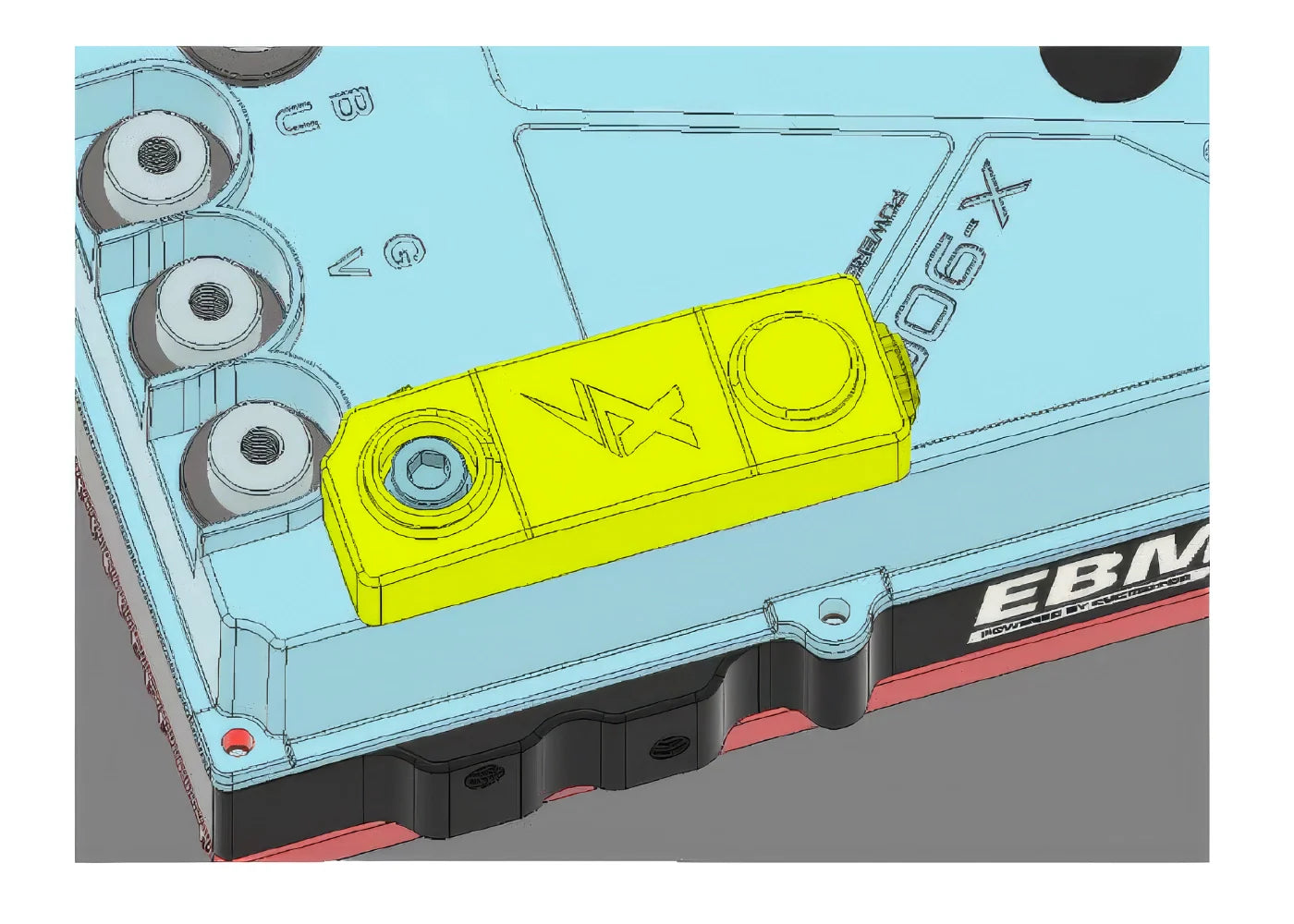

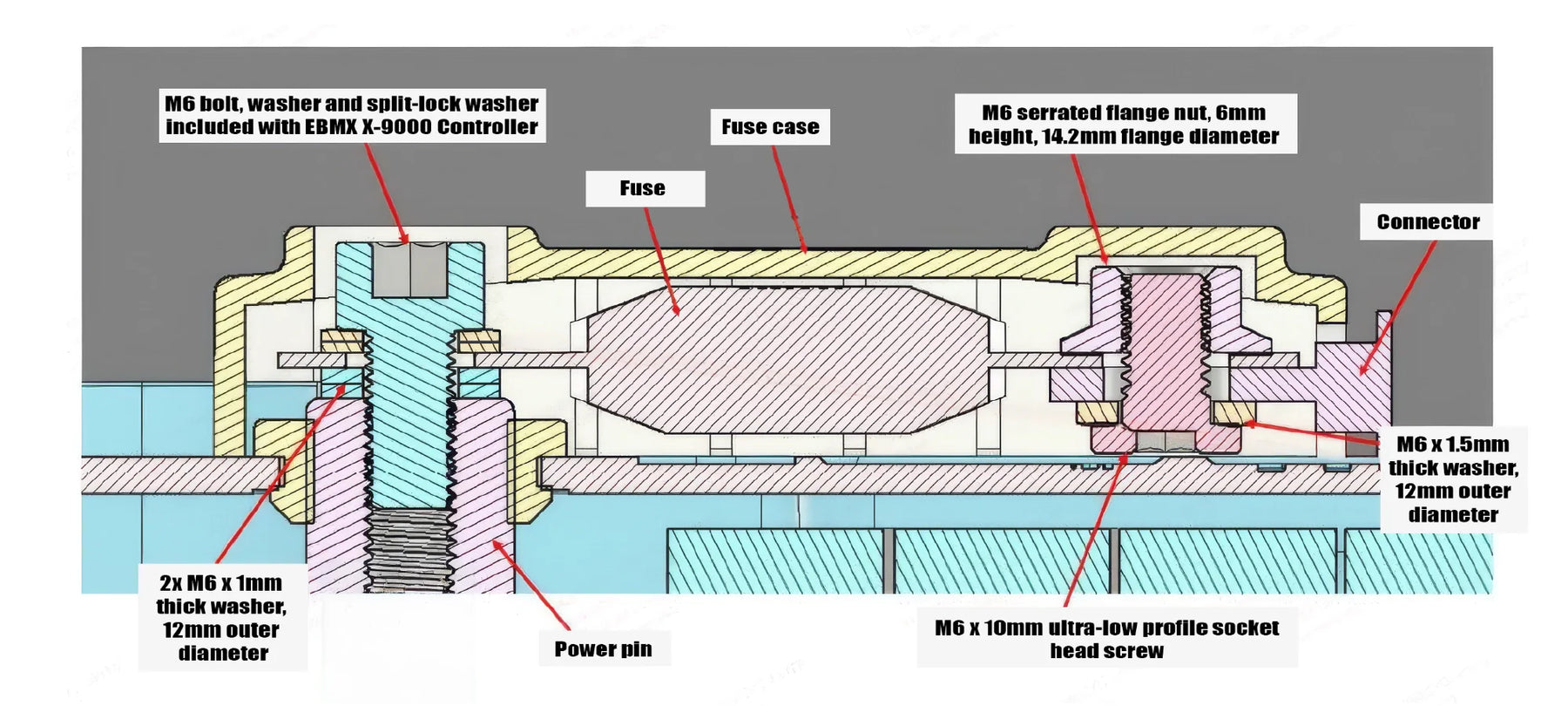

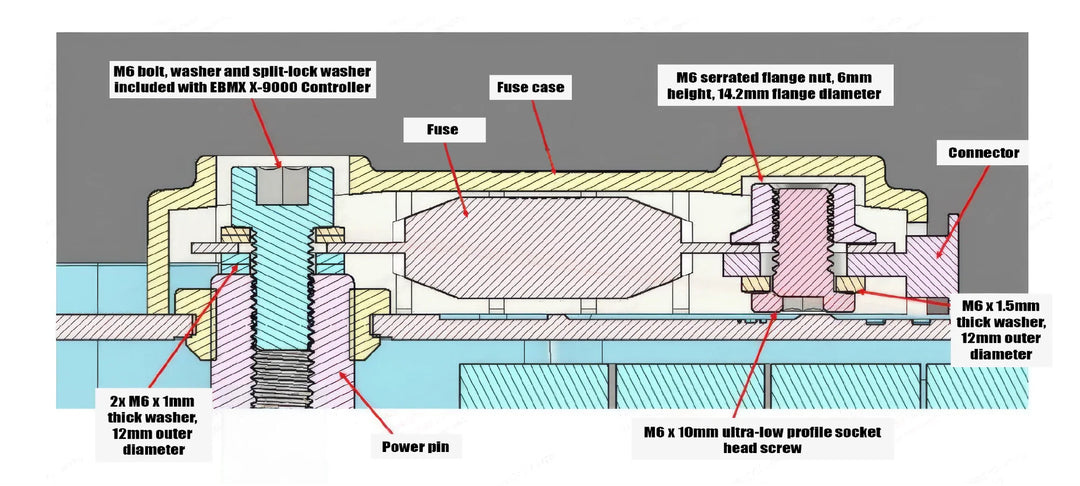

How to Install:

Available Configurations

250A Fuse Kit – Complete installation kit with fuse, fuse case, and mounting hardware.

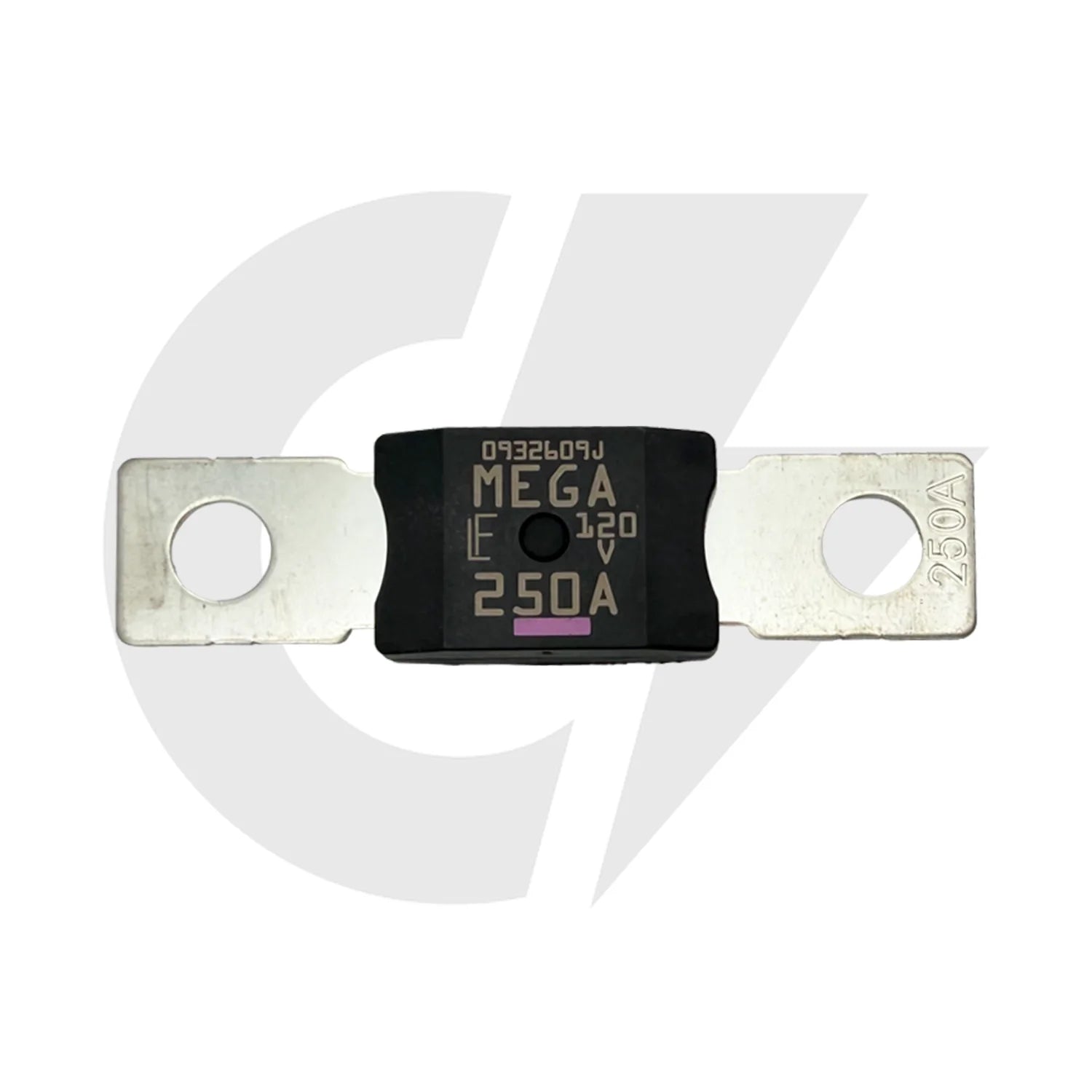

250A Replacement Fuse – Fuse only.

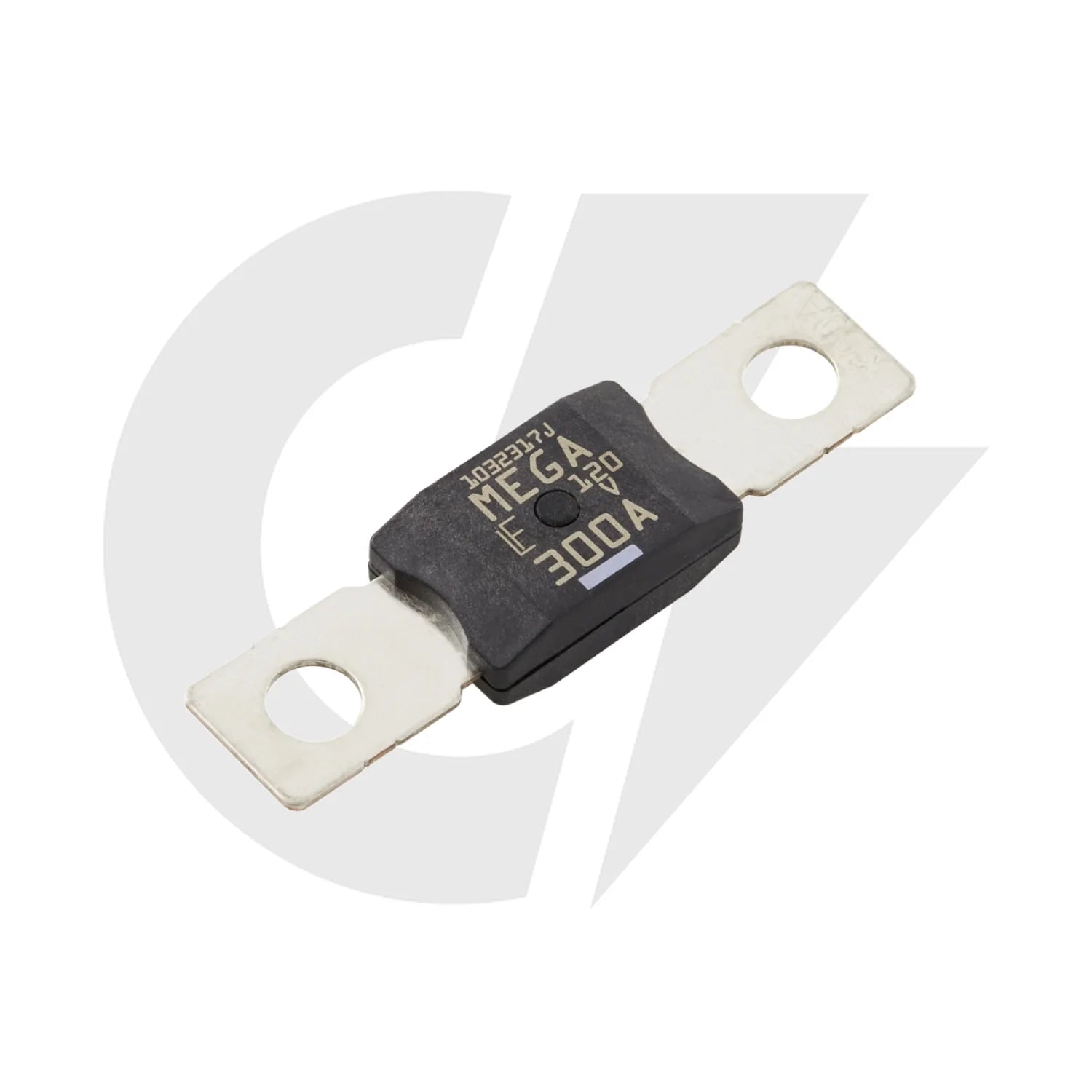

300A Replacement Fuse – Fuse only.

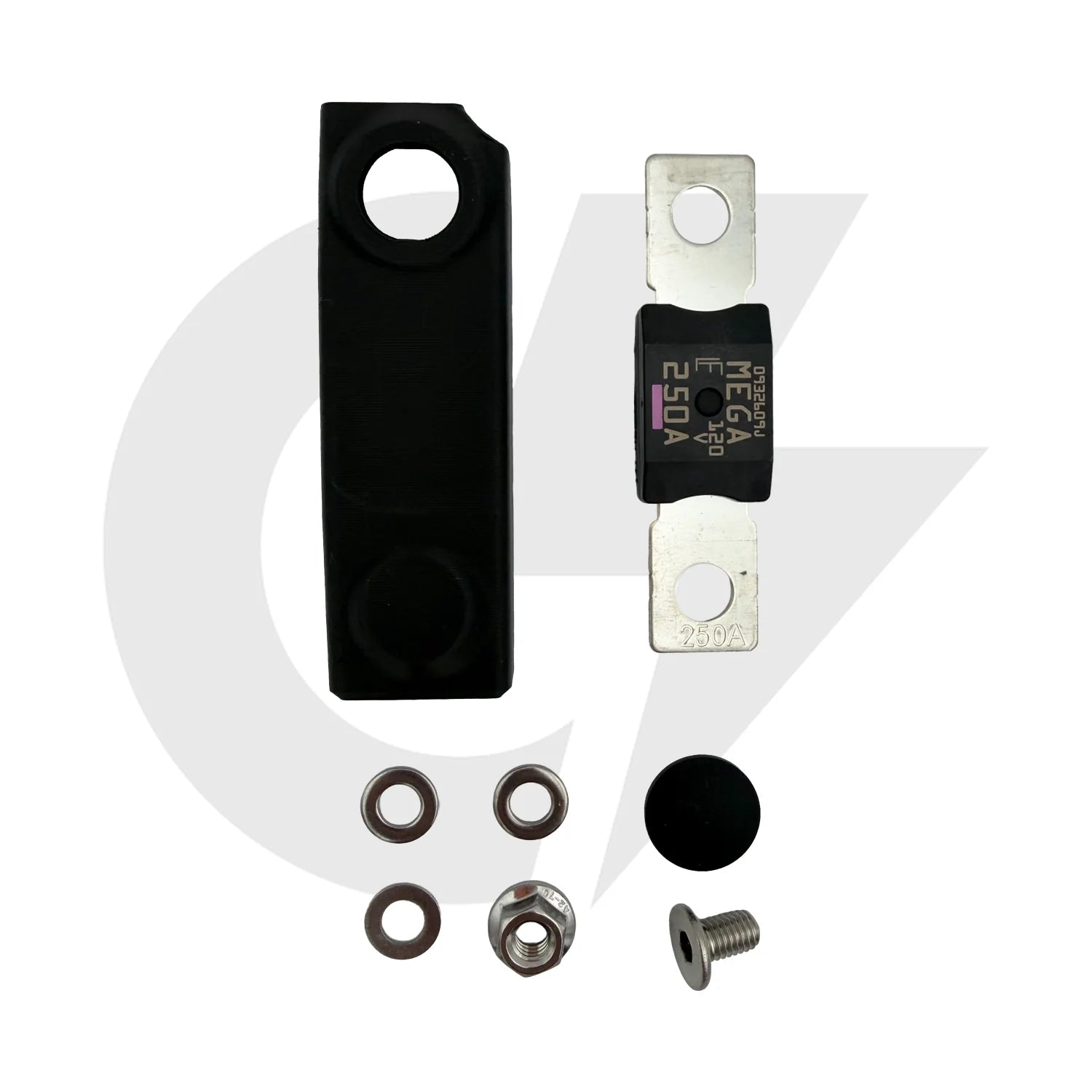

250A Fuse Kit Includes

1x 120VDC 250A Fuse
1x Plastic Fuse Case
1x M6 Serrated Flange Nut
1x M6 x 10mm Ultra Low Profile Socket Head Screw
1x M6 x 1.5mm Thick Washer
2x M6 x 1mm Thick Washers

Features

High-current protection for battery systems
120VDC-rated fuse design
Compact fuse holder assembly
Direct replacement fuse options available
Ideal for high-performance eMoto applications

Installation

Note: Always verify the correct fuse rating for your application before installation.

Freight shipping is available nationwide from $200 to $450 based on your zip code. You can see the full price when added to your cart.

Local Pickup available for FREE in Salt Lake City, Utah.
